APAP PLUS Connectivity comes with wifi and bluetooth oxygen smart watch

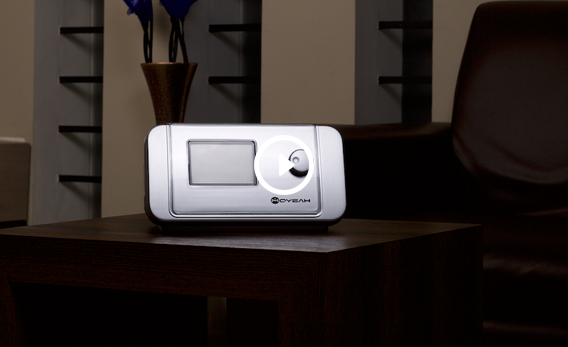

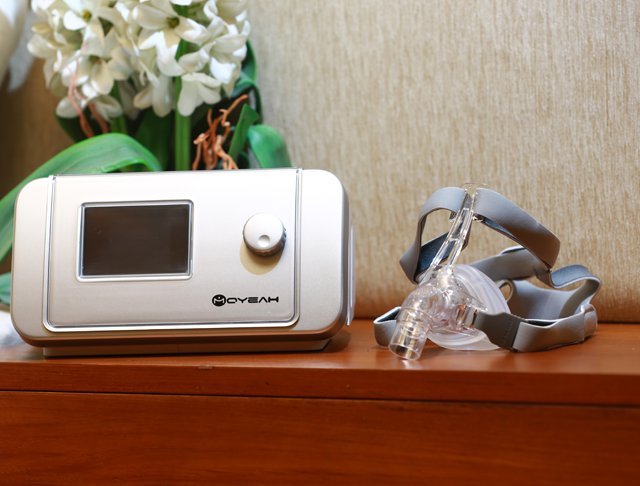

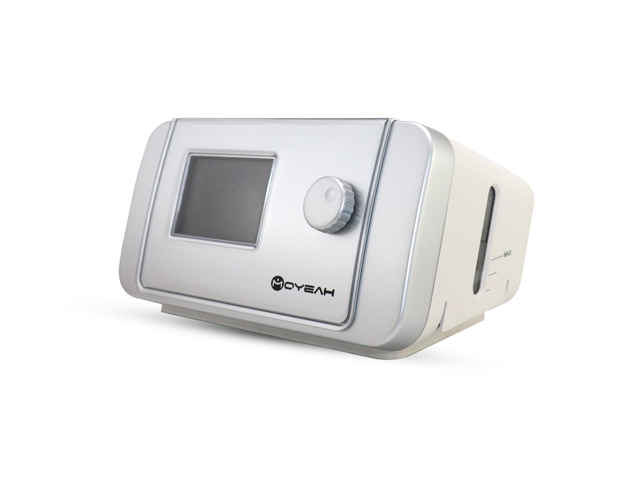

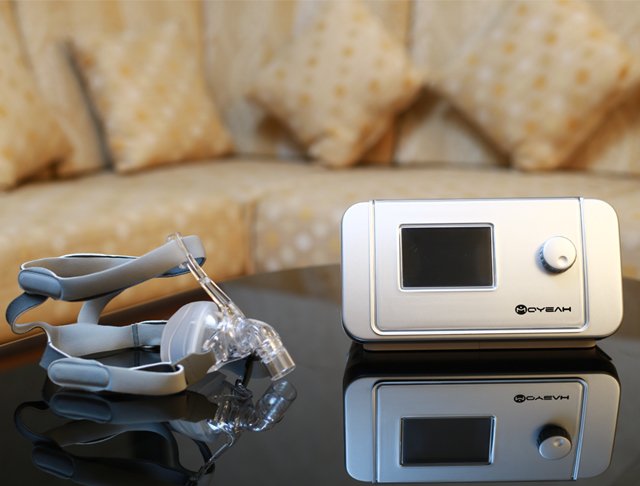

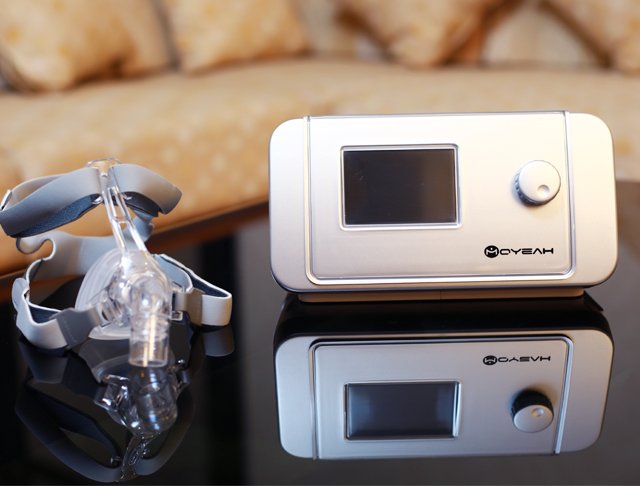

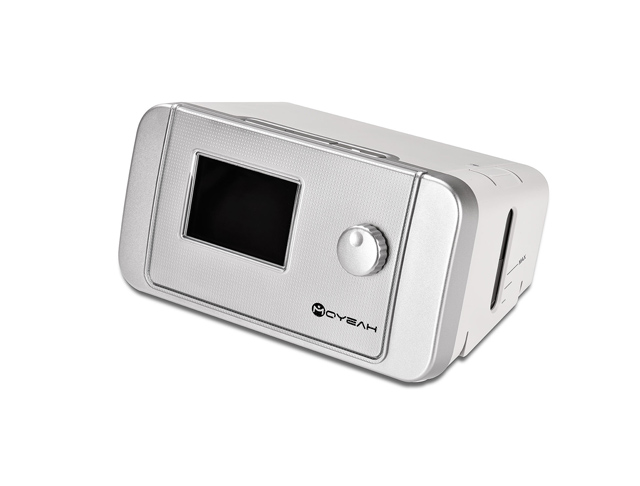

Moyeah iBreath apap plus Machine built-in wifi technology, you get unprecedented access from Moyeah care to therapy data and remote access to device settings, helping you to be more connected with your patients and even more efficient in your business.
Sp02
Pulse Rate
Vibration
Wireless Monitor
Bluetooth
App
PC Report
Cloud
How Snore affects the breathing?

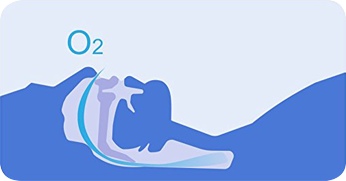

Normal Breathing
During sleep, air travels freely through airways
OSA Snore (Obstructive Sleep Apnea)
Airway collapses, blocking airflow and disturbing sleep.
Oxygen Level
Overnight monitoring and recording
Heart Rate
Overnight monitoring and recording
Smart Vibration
To reduce snore & breath more oxygen
Screening for OSA
App on Mobile
Patented Ring Sensor
- Never fall off from finger
- Soft and confortable for wearing
- Built-in Smart Vibrator
- One size suits for different finger sizes
Smart Vibration
- Built -in vibration in the ring Sensor
- Trigged ny low Oxygen Level
- Vibration stirs you to AVOID LOW OXYGEN LEVEL
- Adjustable vibration intensity and threshold fits you best
Easily monitoring on mobile device
- App shows Oxygen level, Heart Rate in real-time
- Track health metrics to make instant decision
- Supply real-time metrics for home caring
- Bluetooth BLE wireless
APP for IOS and Android
- Watch health metrics in real-time
- Review data and analysis results for OSA Screening
- O2 Score provides overview of overnight oxygen condition
- Track Long-term trends
- Share and record with your doctor
- Set vibration threshold and intensity on APP
Cutting-edge technologies for clinical
Is designed for patient’s comfort while falling asleep, System will maintain low pressure for the patient to have easier start till particular respiratory events have been identified. Then standard ramp will be implemented.
During respiration treatment, water condensation in breathing circuit will affect the therapy and even threaten the safety of the patients. To solve the issue, resvent unique intelligent humidifier can apperceive the environment temperature & humidity and maintain the humidifying within certain level so that there will not be condensation in the respiration hose or mask.
(Intelligence Pressure Release) algorithm during inspiration & expiration offers patients more comfortable experience during ventilation therapy.
(Respiratory Event Guarantee) algorithm innovated by resvent can continuously determine and monitor respiratory events (AHI, OAI, CAI, HI, SNI, FL, RERA, PB, etc), analyze the physical status of patients, and guarantee the delivery of the optimality of therapy pressure based on that at all time. For those serious respiratory disorder patients, tidal volume is one of the most significant parameters to keep the oxygen saturation, Among resvent iBreeze premium segment, in EVAPS (Essential Volume Assured Pressure Support) mode, the system will adjust optimal supporting pressure automatically and ensure the delivery of pre-setting target tidal volume.
Other Features

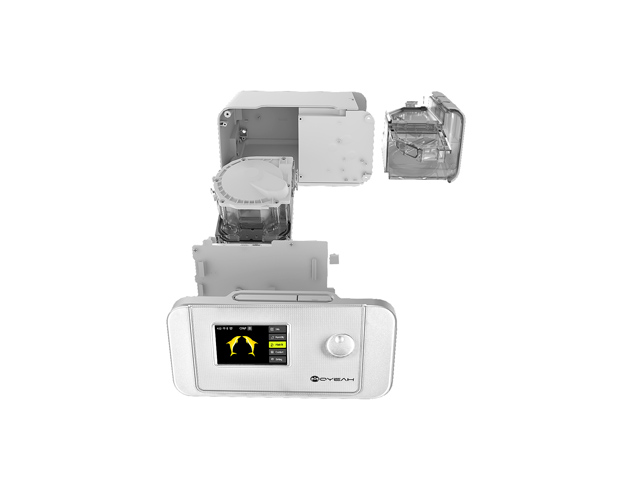

Integrated Humidification: Heated Humidification is a standard feature built in to all the MOYEAH iBreath apap Machine, With the Climate Control’s enhanced Auto option, and press start on your cpap machine to receive the ultimate in therapy comfort.
AutoRamp: MOYEAH iBreath apap Machine auto Ramp feature with sleep onset detection is designated to make therapy as comfortable as possible from the moment you turn on the apap Machine. It works be delivering a low pressure to help you fall asleep with ease. Once it detects your sleeping, it comfortably increases the pressure to ensure the prescribed level is properly delivered.
Advanced event detection: The MOYEAH iBreath apap Machine differentiates between obstructive and central apneas so you can be confident that you are always receiving appropriate therapy
MOYEAH iBreath apap Machine adjust light perception:Auto detect the light intensity,auto adjust the brightness of the screen,protect the eye’s of user’s
Easy-Breathe motor: The quiet Easy-Breathe motor makes for a peaceful environment for you and your bed partner. The innovative design Easy-Breathe motor features foam and isolating materials incorporated into the base of the device. It produces minimal turbulence, delivering more performance, and virtually eliminates the noise radiated into the room.

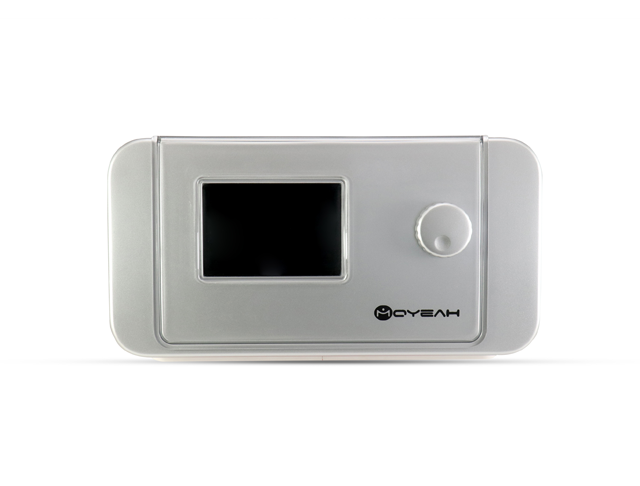

Forward Facing Design: The user-friendly controls, intuitive interface and color LCD screen make it simple to navigate menus and customize comfort settings.
Leakage compensation: Circuit compensation and altitude compensation delivery the guarantee of best accuracy and synchronization.
Unique expiratory release,more compliance with respiratory mechanics
Moyeah iBreath apap Machine Expiratory pressure release changes with the degree of expiratory effort，the more expiratory effort,the more pressure release，also the inspiratory effert was also improved by intelligent calculation，so the inspiatory pressure was also improved,that’s more compliance with respirtory mechanics。
Technical specifications
| Basic Information | |
|---|---|
| Model | 20A, 20A Pro |
| Intended use | OSA |
| User type | Weight above 30kg |
| Physical Characteristics | |
|---|---|
| Weight | 1.35 kg |
| Size | 22.2 x 12.5 x 12.2 cm |
| Screen | 3.5 inches, color |
| Noise level (ISO80601-2-70) | < 28dB |
| Treatment Parameters | |
|---|---|
| Mode | CPAP, CPAP-V (only for 20A Auto) |
| E-COMP (only for 20C Pro) | |
| CPAP pressure range | 4-20 cmH2O |
| CPAP pressure range | 0.5 cmH20 |
| Dynamic pressure | 1 cmH20 |
| Comfort Parameters |
|---|
| Respiratory event detection |
| Auto Ramp |
| Auto eamp |
| IPR (Intelligent pressure release) |
| Auto altitude adjustable |
| Leakage compensation |
| Auto on/off |
| Mask fit |
| Circuit compensation |
| Value Added Functions |
|---|
| Auto screen luminance adjustable |
| Energy saving mode |
| Time and alarm clock |
| Unit setting |
| Multi-language setting |
| Performance self-examination |
| Patient report on main screen |
| SpO2, PR algorithm. |
