A variety colors to choose
Different colors , provide you blue and pink
Pink
Blue

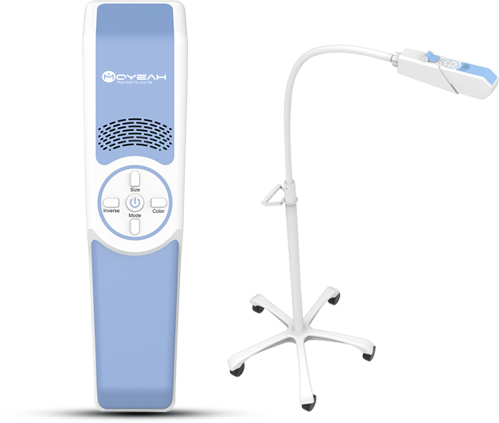

Handheld Vein Finder
Using HD imaging and Df² technology, Moyeah’s portable vein finder is the latest and only handheld vein illuminator that offers benefits for all patients during the entire vascular access technique.
It is ideal for alternate care facilities, such as surgery and blood/plasma centers, as well as home healthcare and Emergency Medical Services (EMS), VeinViewer Flex is designed for durability and maximum portability. Flex is also suited for hospital departments such as the Emergency Department and NICU where space requirements and speed of assessment demand an ultra-portable and reliable vein finder.
Function
It provides a real time accurate image
of the patient‘s blood pattern (depth ≤ 12mm) of any part of body.
Principle
MOYEAH VF100 vein finder projects near-infrared (no radioation) light which is absorbed by blood and reflected by surrounding tissue, and this information is captured and processed, finally projected in real time directly onto the surface of the skin.
Application
Pediatrics
- Small veins
- “Baby fat”
- Anxiety of the children
and their families.
Oncology
- Fewer options for successful access because of repeated infusions and procedures and medication
Radiology
- Limited viable patient access
- Should puncture the big and straight veins
Plastic Surgery
- Sclerotherapy for treating spider telangiectasia
- Cosmetic injections on the face
Vascular Surgevry
- Sclerotherapy for treating spider telangiectasia
- Vein stripping treating
Emergency
Pre-operation
laboratory
Should face number of vascular access challenges
| Small Size and fragility of vessels | Dehydration |
| Hypertension | Multiple disease states |
| Reduced vessel options due to blood loss | Skin tone |
| Edema or fatty tissue | Shock induced vasoconstriction |
* Other: on light or dim environment, high pressure, Fast-paced, etc.
Application Image
VF100 Main Unit Information
Light type: Near-infrared light
Infrared wavelengths: 850 nm
Image resolution: 720*480
Visible Vein Size: ≥1mm
Accuracy: 0.25mm
Depth of Visible Vein: ≤12mm
Best projection distance: 200±20mm
Image frame rate: 20FPS
LED lifetime: 20000 hours
Power Supply: DC 5V ≤3.5W
Weight: 450g
Dimension: 240x60x60mm （LxWxH）
Battery volume: 4400mAH
Battery working time: ≈ 5 hours
Charging time: ≈ 3 hours
Battery detachable: Yes
Operating Mode: Handheld or Suspension
Package information: 52X30X23cm, 2.3kg
VS300 handheld model vein illuminator
includes main unit, battery (1pcs), charging base.

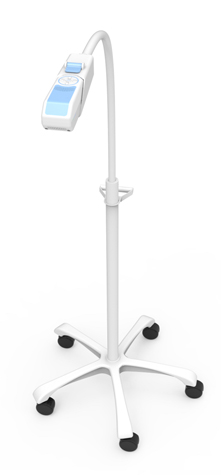

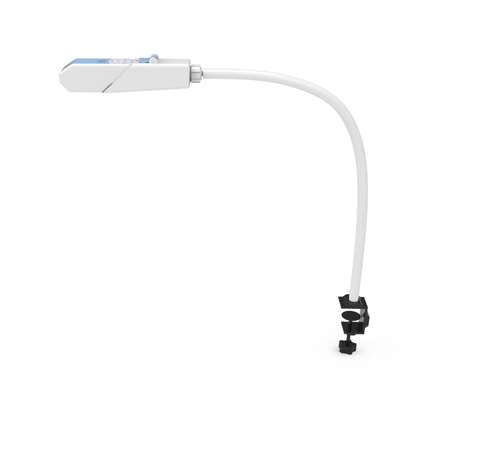

Fixed support or Mobile support is optional.
Diameter of base: 600mm
Weight: 5kg Height
adjustable range: 1100-1600mm
Wingspan adjustable range: 500mm
Degree adjustable: 360°
Cardon link: 7DoF
Weight Support: ≤1.2kg
Hover at any position: support
Wheel dimension: 2″
Package information: 70X70X22cm, 6.2kg
Dimension: 400x120x320mm (LxWxH)
Weight: 1.2kg
Height adjustable range: 150mm-500mm
Wingspan adjustable range: 500mm
Cardon link: 3DoF
Weight Support: ≤1.2kg
Hover at any position: support
Package information: 16X16X90cm, 2.7kg
VF-100 Main Unit Parameter
Light Type : Near-Infrared light
Infrared Wavelengths : 850 mm
Image Resolution : 720*480
Best Projection Distance : 200+20mm
Power Supply : DC 5V<3.5
Weight : 450g
Dimension : 240x60x60mm (LxWxH)
Battery Volume : 4400mAH
Battery Working Time : 5 hours
Charging Time : 3 hours
Battery Detachable : Yes
Operating Mode : Handheld or Suspension
VF-100 handheld model vein finder incudes main unit,
battery (1)pcs, charging box.
Fixed supportor or mobile supportor is optional
